  • 800XL - Ball Valve 1/2-2

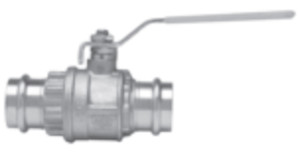

The KITZ 800XL is a full-port ball valve designed for press-fit installation in commercial plumbing and HVAC systems. Manufactured from lead-free copper alloy, it meets low-lead compliance standards while offering excellent corrosion resistance and durability. The valve features a blowout-proof stem, adjustable packing gland, and a chrome-plated brass ball for smooth operation. Compatible with standard press tools, the 800XL ensures quick and secure connections without soldering. Available in sizes from 1/2" to 2", it is ideal for potable water systems and other applications requiring reliable shutoff performance.

1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart Add to PDF Submittal Cart

Item #

Ball Material

Size

Length (L)

Height (h)

Weight

800XL-012 N/A LF Brass (C28500) N/A 1/2 N/A 2.93 in N/A 1.77 in N/A 0.41 lb
800XL-034 N/A LF Brass (C28500) N/A 3/4 N/A 3.37 in N/A 2.22 in N/A 0.73 lb
800XL-100 N/A LF Brass (C28500) N/A 1 N/A 3.81 in N/A 2.32 in N/A 1.07 lb
800XL-114 N/A LF Brass (C28500) N/A 1 1/4 N/A 4.17 in N/A 2.85 in N/A 1.57 lb
800XL-112 N/A LF Brass (C28500) N/A 1 1/2 N/A 5.23 in N/A 3.09 in N/A 2.53 lb
800XL-200 N/A LF Brass (C28500) N/A 2 N/A 6.27 in N/A 3.70 in N/A 4.40 lb
